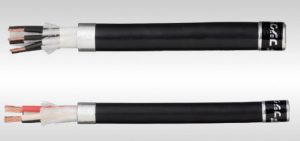

Control Cables (CVV)
Applications
Control cables are used in control systems of a variety of plants including power generating stations and substations.
Cable type
| Symbol | MAX. Operating Temperature of Conductor (°C) |
Insulation Materials | Sheath Materials | Application |
| CVV | 60 | PVC | PVC | General use |
| CEV | 75 | Polyethylene | PVC | |
| CCV | 90 | Crosslinked Polyethylene |
PVC | |
| CEE | 75 | Polyethylene | Polyethylene (Black) | Chemical resistance |
| CCE | 90 | Crosslinked Polyethylene | Polyethylene (Black) |
Shield types and symbols
| Shield Type | Symbol | Remarks |
| Annealed copper tape | -S | Annealed copper tape is wrapped around cores. |
| Aluminum laminated plastic tape | -SLA | Applied for grounding through drain wire. |
| Annealed copper wire braid | -SB | Shield is formed by braided copper wire. |
| Annealed copper tape and steel tape | -SCF | Annealed copper tape and steel tape are wrapped around cores. |
